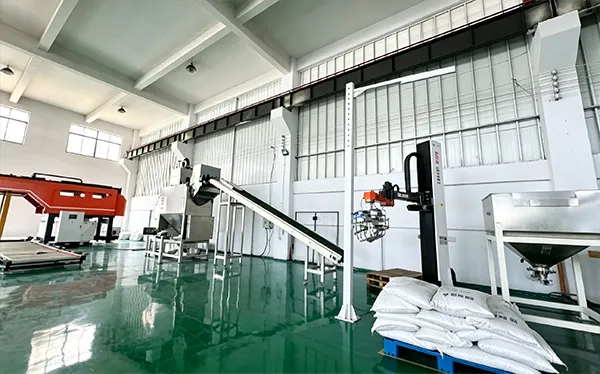

Column Robot Debagging Machine

The automatic column debagging robot system, also known as a bag unpacking/emptying system, is designed to replace manual processes. This system functions by picking up filled bags and cutting them at the hopper using a cutting knife. The head or tool of the column robot debagging system securely grips the bags and transports them to the cutting knife. Once cut, the system vibrates to ensure all raw materials inside the bags flow out. Simultaneously, the empty bags are directed to a designated area for efficient collection.

Popular models

FL-SC50

Maximum bag weight: 80 kg Unpacking capacity: 120 Bags per hour 99.95% bag emptying ratio
Get A Free Quote
FL-SC50

IRB 660-180

Unpacking capacity: 180-220 Bags per hour Maximum Load of Robot: 180 kg 99.95% bag emptying ratio
Get A Free Quote
IRB 660-180

FL-CBJ

Unpacking capacity: 600-800 Bags per hour 99.95% bag emptying ratio Power: 7.5kw, Three phase 380V/50HZ
Get A Free Quote
FL-CBJ

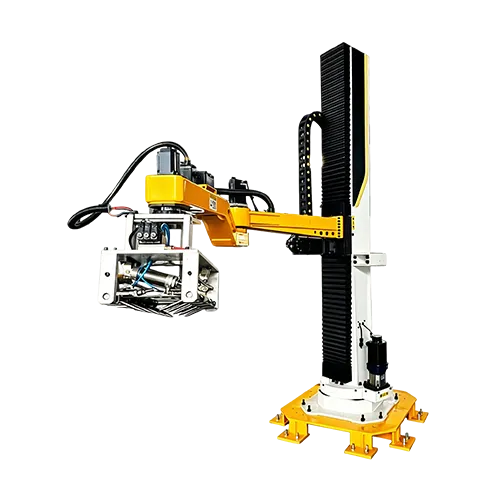

Column Robot Debagging Machine

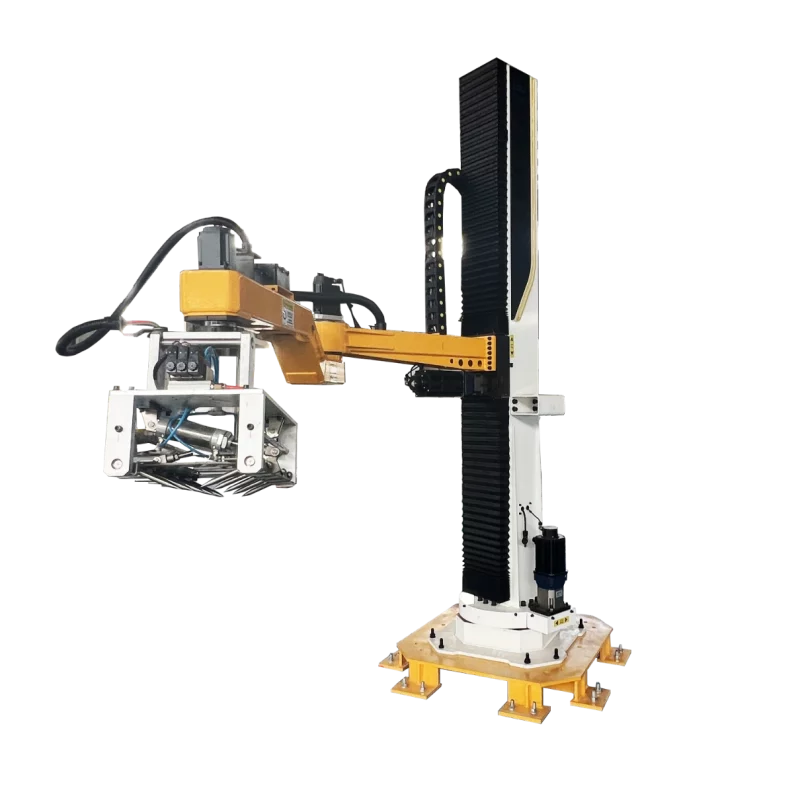

Column Robot Bag Unpacking
  • Model: VPK-LZ150
  • Power: 6 kW Three phase 380V/50HZ (Can be customized)
  • Radius of gyration: R2200mm
  • Dimension (LxWxH): 2750x950x3250mm(LxWxH)
  • Equipment Weight: 960KG
  • Debagging speed: 80 to 100bags per hour
  • Maximum height: less than 2000mm(from ground)
  • Mechanical arm burden(payload): <150kg

Column Robot Debagging Machine Structure

Column Robot Bag Unpacking

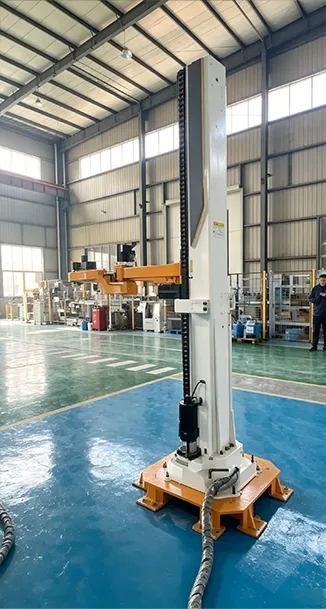

Column Robot Body

Powder-coated Q235 steel body, corrosion-resistant, robust. Integrated servo motors + high-precision RV/planetary reducers, mm-level accuracy. Optimized axial design, large working radius, heavy-duty gripping.

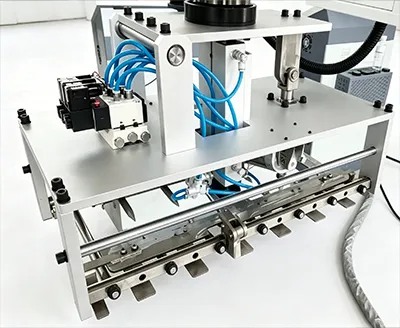

Specialized Gripper

Custom gripper, aluminum alloy + 304 stainless steel. Servo + pneumatic grip force control, stable material bag handling.

Control System Hardware

Powder-coated Q235 steel enclosure, EtherCAT bus support, ms-level response.

Control System Operation & Components

Teach pendant with Chinese/English/Korean interface. Premium electrical components (e.g., Schneider), stable, low downtime.

Hopper with Cutting Knife

Inlet with cutting blades, automatic discharge to downstream conveyors. Hopper specs customizable by material volume.

3D Vision Recognition System (Optional)

Real-time material height & offset angle detection. Precise gripping for irregular stacking/varying layers, improved flexibility.

MACHINE COMPONENTS

Germany Siemens Touch Screen

Germany Siemens Touch Screen

Taiwan China AirTAC oil water separator

Taiwan China AirTAC oil water separator

China XINJIE Servo motor Driver

China XINJIE Servo motor Driver

Germany Siemens PLC

Germany Siemens PLC

France Schneider Inverter

France Schneider Inverter

France Schneider Relay

France Schneider Relay

American METTLER TOLEDO Load Cell

American METTLER TOLEDO Load Cell

France Schneider contactor

France Schneider contactor

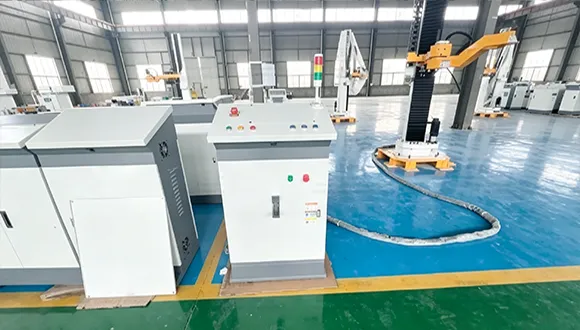

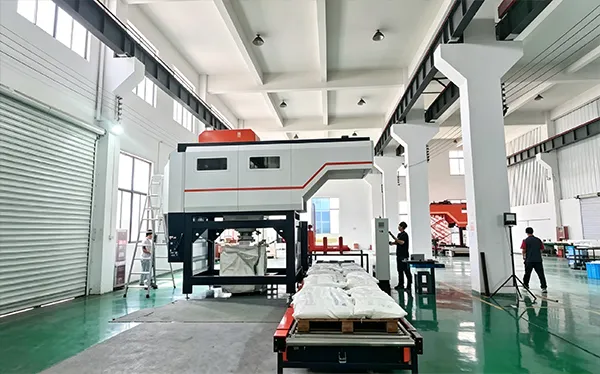

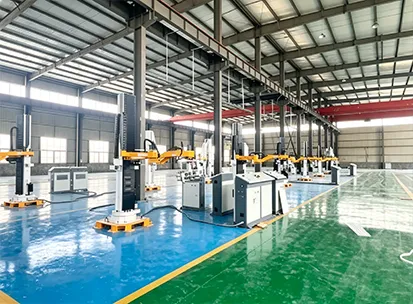

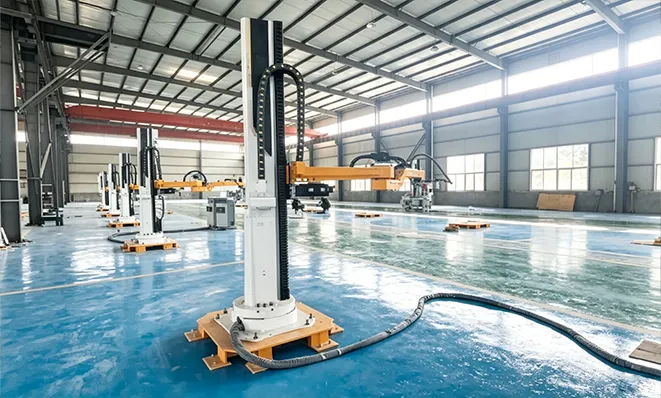

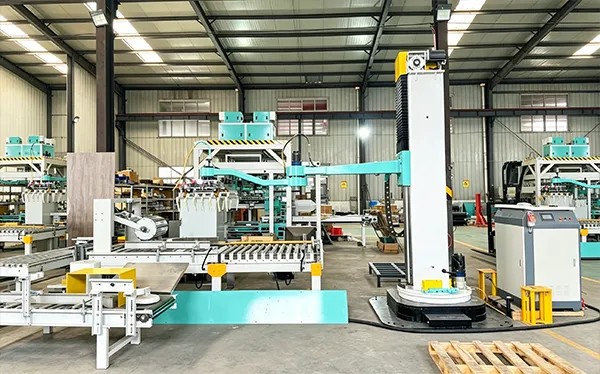

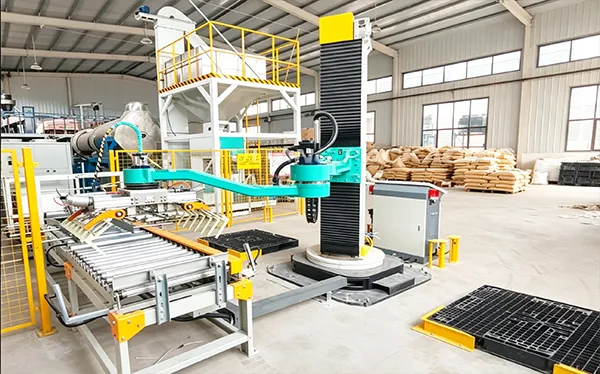

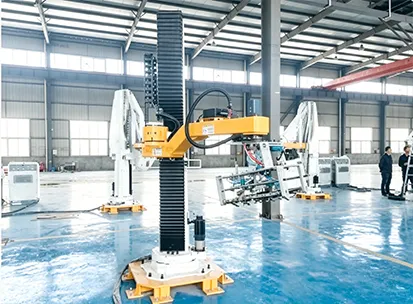

Real Factory Production

Every machine is strictly tested with high-standard craftsmanship, stable performance and reliable quality.
One-Stop Packaging, Debagging & Palletizing Systems
From raw material handling to finished goods stacking, we cover every step of your production line.
View Full Solutions

Integrated Debagging & Palletizing Solutions for Bulk Materials

Widely used in food, chemical, pharmaceutical, building materials and logistics industries. Compatible with woven bags, bulk bags and other standardized bagged materials, delivering one-stop automation from debagging, conveying to palletizing.

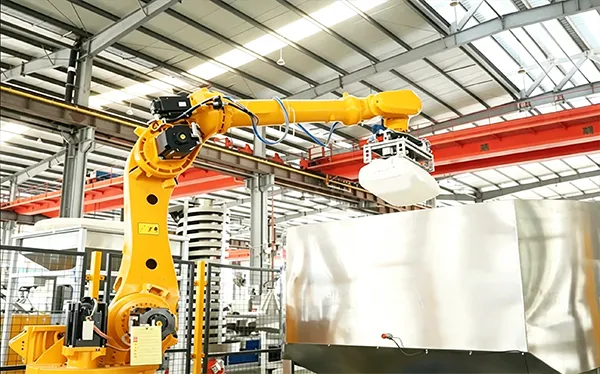

Robotic Woven Bag Unpacking & Discharging
Column-Type Bag Palletizing Machine
High-Level Automatic Palletizing System

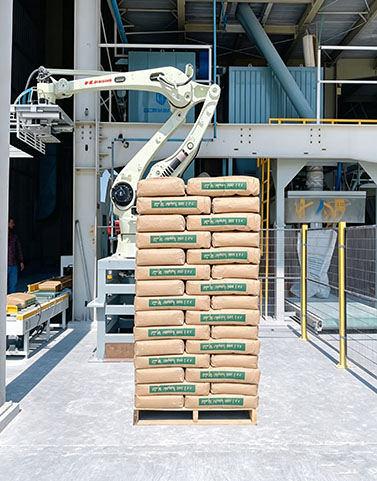

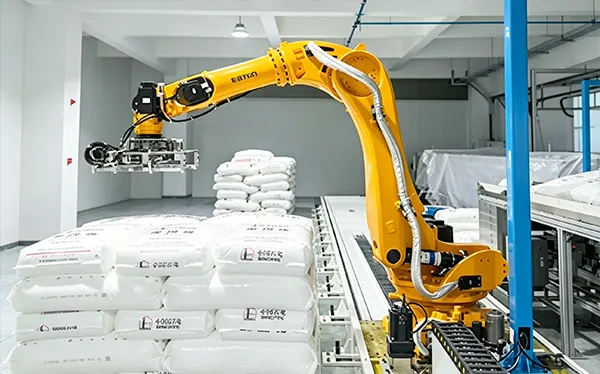

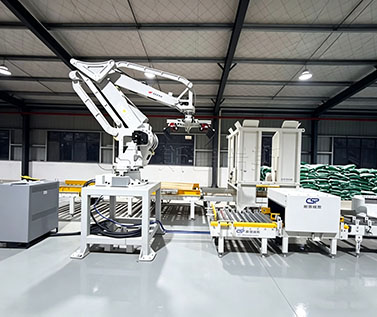

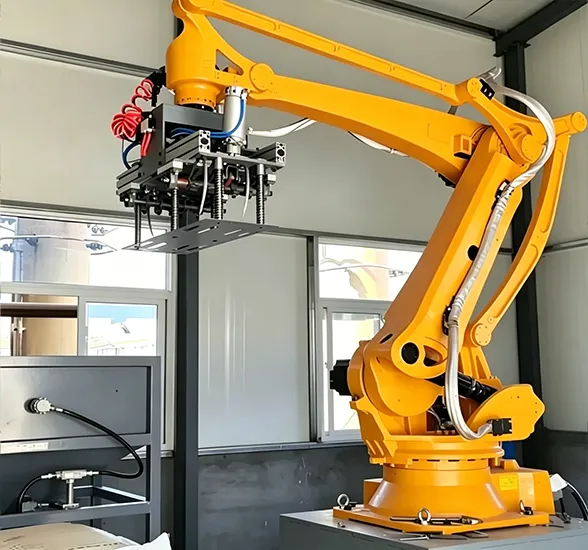

Articulated Robot Bag Palletizing

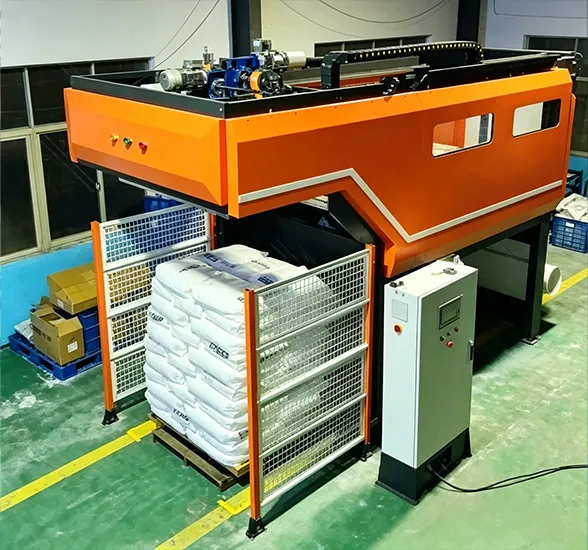

High-Speed Gantry Palletizing Machine
Integrated Packaging & Palletizing Line

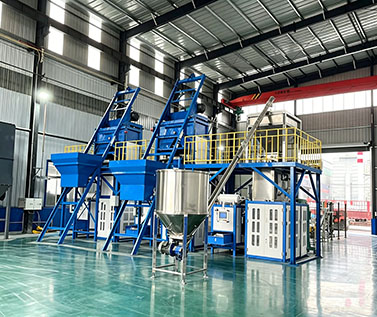

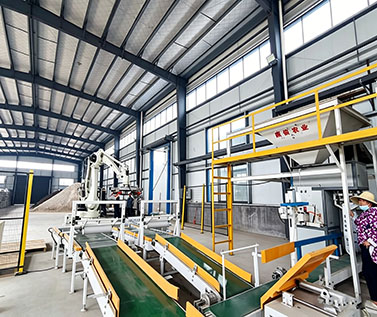

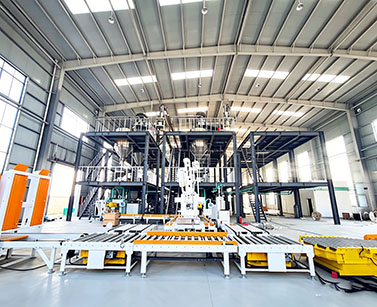

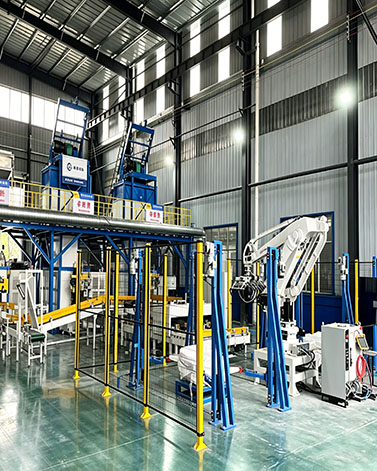

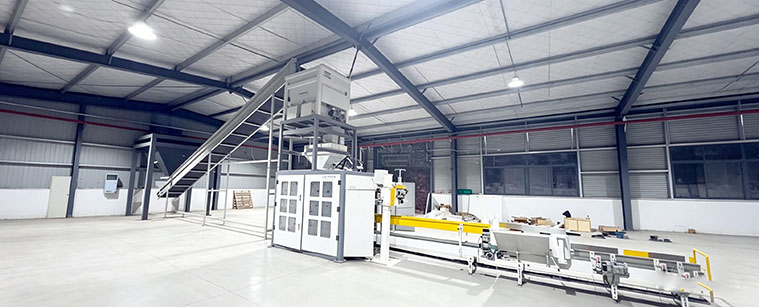

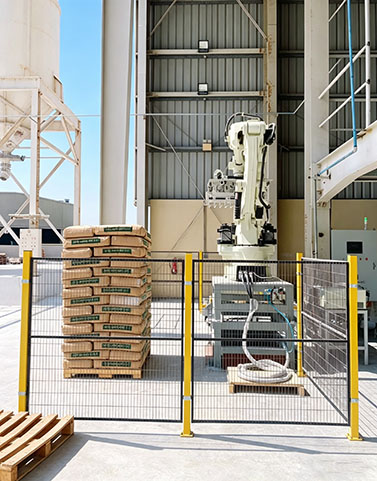

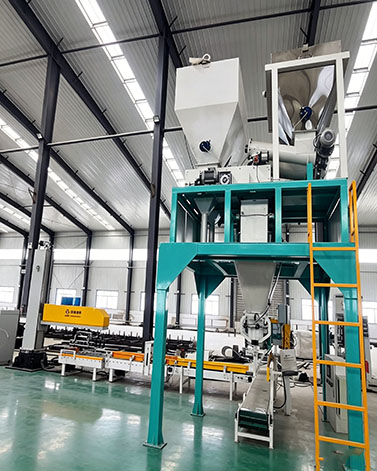

Real Site Cases & Reference Projects

We offer automated packaging & palletizing solutions for building materials, chemicals, grain, feed and fertilizer. Custom solutions save labor and improve efficiency.

100000+

Foodline cases in over 100 centuries

Reliable Quality & Service, Good Reputation

About US

Customize Your Exclusive Solution

Founded in 2005, Foodline is a leading manufacturer with 20+ years of expertise in automatic packaging, debagging and palletizing machinery. Our products include automatic palletizers, semi/full-automatic packaging lines and debagging machines. Leveraging strong automation industrial chain advantages, we deliver one-stop intelligent solutions integrating R&D, design, manufacturing and on-site service, backed by high-performance equipment and full after-sales support for global customers across industries.

Get A Free Quote

Customer Visit

  • Column Robot Bag Unpacking
  • Column Robot Bag Unpacking
  • Column Robot Bag Unpacking
  • Column Robot Bag Unpacking
  • Column Robot Bag Unpacking
  • Column Robot Bag Unpacking

You May Also Like

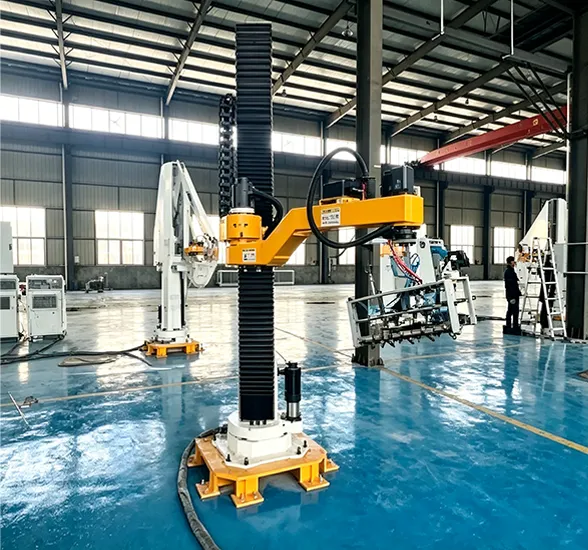

Single Column Palletizer

Single Column Palletizer

Coordinate Palletizer

Coordinate Palletizer

High Level Palletizer With Gripper

High Level Palletizer With Gripper

High Level Palletizer With Flat Push

High Level Palletizer With Flat Push

Frequently Asked Questions

What’s the main difference on machines between Foodline Automation and other manufacturers?

+

(1)The basic manufacturing principle of Foodline is to use international brands components as much as possible. Almost 95% to 100% components of them are made by OMRON>, SIEMENS>, ABB>, Schnieder>, AirTAC>, NSK>, etc. In this case, our foreign clients will have no worry about the lifespan and replacement issue in the future.

(2)In product design and program design, we adhere to the principle of simplicity and ease of use. After all, the purpose of automation is to save labor cost but not to create operation cost.

What’s the main difference on service between Foodline and other manufacturers?

+

(1)Foodline’ salesmen are not only sellers but also seasoned engineers. They could help you a lot on providing best solution and proper machines.

(2)Foodline provide integrated solution for clients. Besides providing high quality machinery, in time online after-sale service and on site installation service, we could help clients to choose suitable package raw materials, calculate site area, input-output ratio, electricity, air supply etc.

How to choose proper packing machine?

+

If you need packing machines for small bags, firstly please confirm your bag type.Secondly, according your product’s characteristic to choose dosing system(screw type, pump type, etc). Thirdly, according to bag size choose machine model.

If you need packing machine for big bags(5kg to 50kg), just tell us your target output per hour and the name of your raw materials.

How to choose proper automatic palletizing machine?

+

Please tell us the pallet size, target output( bags/hour). We will recommend most suitable model to you.

How long does it usually take to receive the equipment?

+

The production time of different machines ranges from 10 days to 30 working days.

As for shipping issue, there are different shipping ways for options. For most countries, we could help clients to do Door to Door shipping service. Air shipping is fast but expensive,it’s a good choice for urgent orders, it only takes 7-10 days max. Sea shipping is the most economical shipping way, depending on different destination seaports, the shipping times ranges from 15 to 45 days.

How long does it usually take to receive the equipment?

+

The production time of different machines ranges from 10 days to 30 working days.

As for shipping issue, there are different shipping ways for options. For most countries, we could help clients to do Door to Door shipping service. Air shipping is fast but expensive,it’s a good choice for urgent orders, it only takes 7-10 days max. Sea shipping is the most economical shipping way, depending on different destination seaports, the shipping times ranges from 15 to 45 days.

What’s the guarantee of the machine?

+

We have 1 year guarantee for all the machines. If any components is broken during 1 year, we will send replacement to clients for free by express. And we will take videos to teach you how to replace it. Also we have several service center in different countries. We offer lifetime technical support. Since we adopts international components, clients are easy to source spare parts from local after 1 year.

How will my machines be installed if necessary? How long does the installation take?

+

We’ll dispatch an engineer to your facility, help to install the machine and train your staff on how to operate it. The customer pays for round trip airfare, accommodation and USD150/day/person. Depending on the machines you ordered, it will which takes about 7 to 30 days.

Do you have any reference?

+

We have customer success cases in most countries. Suppose we get permission from a customer who imports a machine from us.

What is the packing speed of the machine?

+

The actual speed may be influenced by factors as follows:

Material: viscosity, density, volume, weight, etc.

Machine: the speed of the dosing system (piston for liquid, combination scale for granules and augur filler for powder)

Do you have certificates?

+

We have been certified by reputable certification bodies.

How do i test the machine before shipping?

+

Once the machine is finished, we will run over 72 hours and send test video to you. Of course, you can come in person or hire a third-party organization to inspect our factory.

What is your terms of payment ?

+

Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment.
